Rotor Flowmeter
Features
◉ Excellent low-flow performance

◉ Versatile design may be used for gas, steam, and liquids

◉ Low pressure loss for gas and steam applications

◉ Suitable for high pressure and high temperature applications

◉ Turn-down ratio of 10:1
◉ Local indication and intelligent remote LCD display

◉ Easy-to-read analog pointer style indicator

◉ Intrinsically safe & explosion proof for hazardous area applications


Request a quote

PRODUCT DETAILS

Introduction
Specifications
Documents
Applications

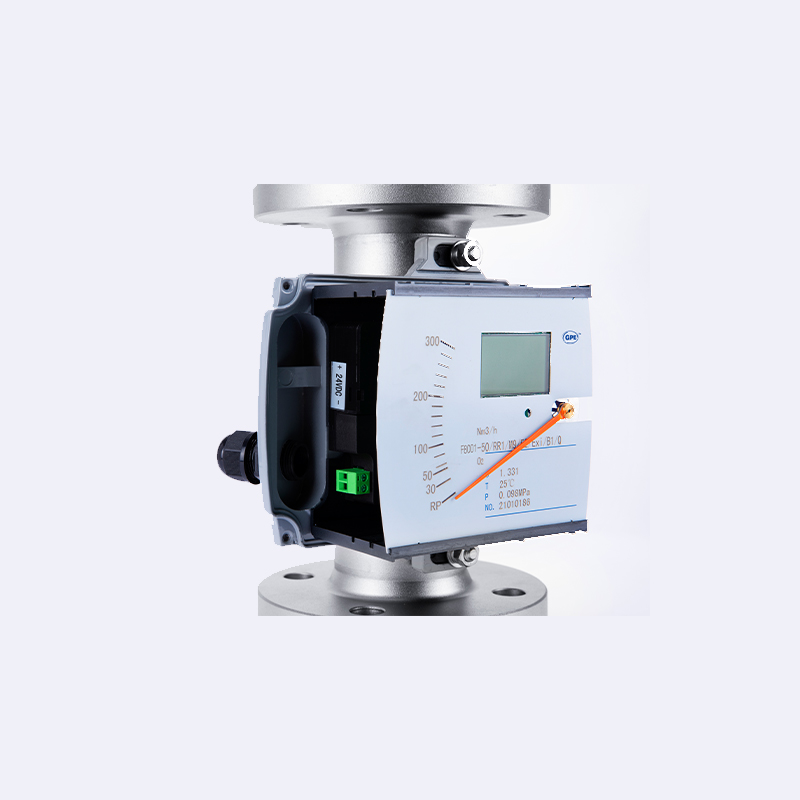

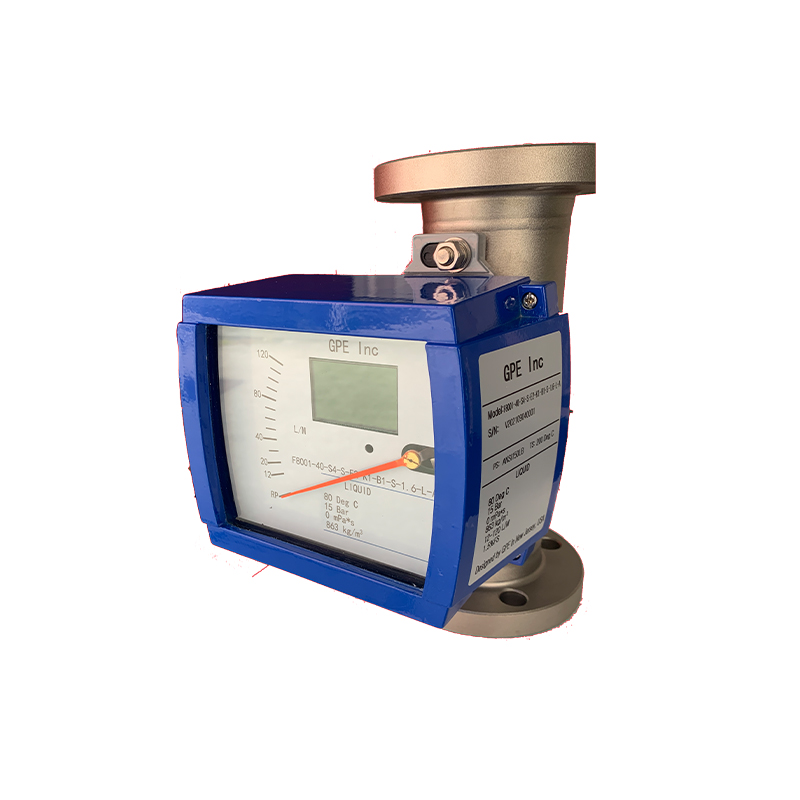

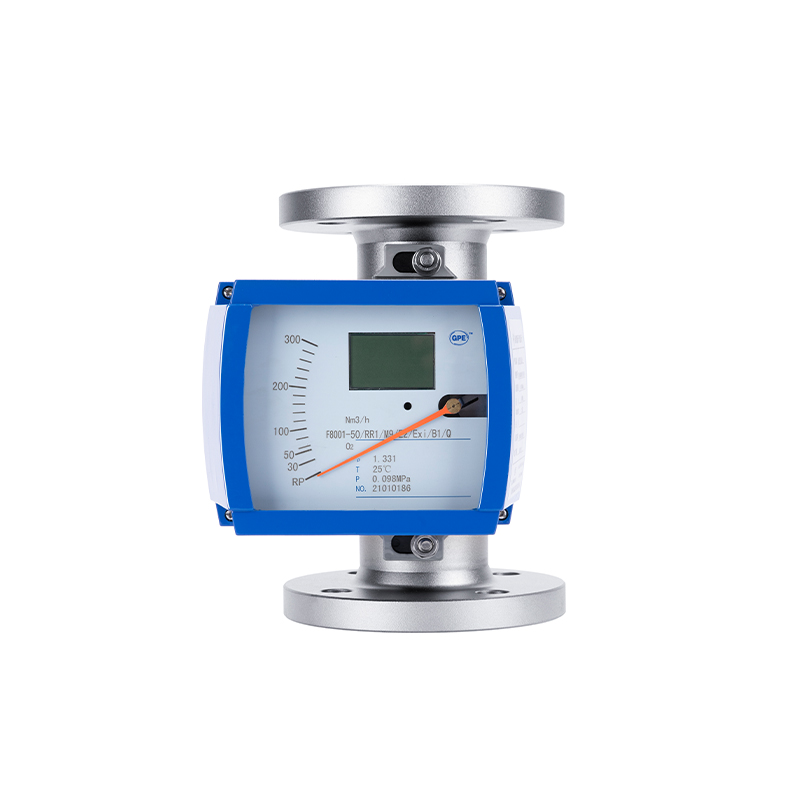

F8001 rugged metal tube variable area meters (rotameters) are ideal for high pressure, high temperature and other demanding flow applications where safety is a concern. Features include: globally-recognized approvals for use in hazardous environments; analog and digital LCD local display options, multiple process connection options; several avaliable materials of construction for metering of aggressive fluids and corrosion resistance; HART enabled 4-20mA output to provide for remote monitoring and control. The F8001's excellent repeatability makes it a good choice for batching applications. For versions without electronic output, no power supply is required. The F8001's low-pressure drop provides additional value by allowing for economical pump selection.

 Size                15 ~ 150mm
 Measuring Range                Water (20℃) 15 ~ 150,000 l/h
Air (20℃, 0.1013MPa) 0.7 ~ 1000 m3/h
 Temperature                Standard (E) -40 ~ +200℃, PTFE: -40 ~ 80℃
High temperature (H): +200 ~ +400℃ 6.5 ~ 15.6 KPa
 Pressure Loss  Pressure                Standard: 1.6MPa (DN65 - DN150) 4.0MPa (DN15 - DN50)
High: 2.5MPa (DN65 - DN100) 6.4MPa (DN15 - DN50)
 Viscosity                15m ~ 20 mm - < 30 CP
25mm ~ 40 mm - < 250 CP
50mm ~ 200mm - < 300 CP
Top enter、Top exit
 Wetted parts                SS #304 standard, SS #316 optional Tantalum (flow tube) PTEE (flow tube)
PTFE lining
ANSI and DIN-type avaialble
 Flanges   Accuracy                ±1.5%(Standard)
±2.5%(PTFE liner)
 Repeatability                ±0.5% of reading
Signal Output                4-20mA (2-wire)
Local Display                Mechanical Indicator (standard)
Digital Display                Rate 0 ~ 50000
Total                0 ~ 99999999 (with decimal)
 Power Supply                Standard:24VDC,two
wire4~20mA(18VDC~30VDC)
3.6VDC @ 5.2 AmpHours Lithium
Approvals                Isolation: Exd Ⅱ CT5 Intrinsic Safety: ExiaⅡC
Alarms                High / Low limit alarm maximum 1A @ 24VDC
 Data Storage                EEPROM (up to 10 years)
 Flow Orientation                Top enter/top exit, Standard
Bottom enter/Top exit
Right enter/Left exit
 Left enter/Right exit
 Protection                IP 67
 Housing Material                Aluminum
 Cable Connector                M20x1.5 or ½" NPT

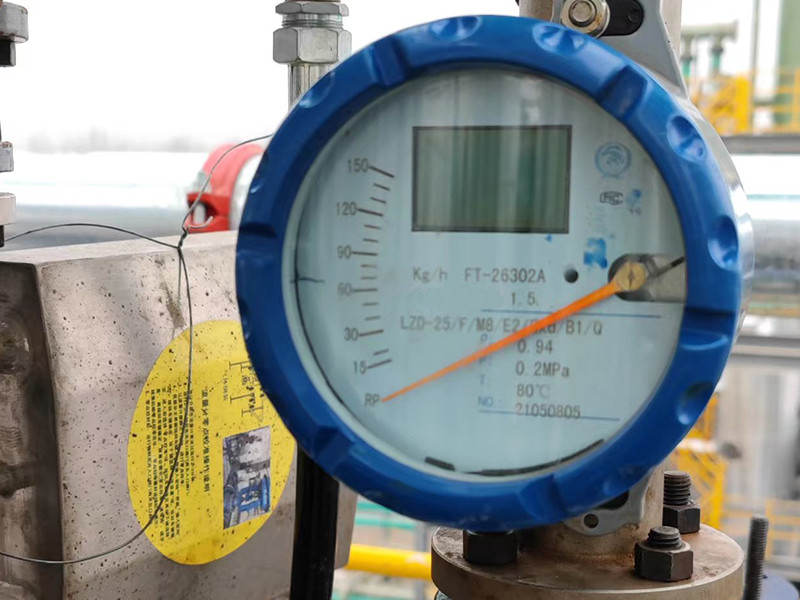

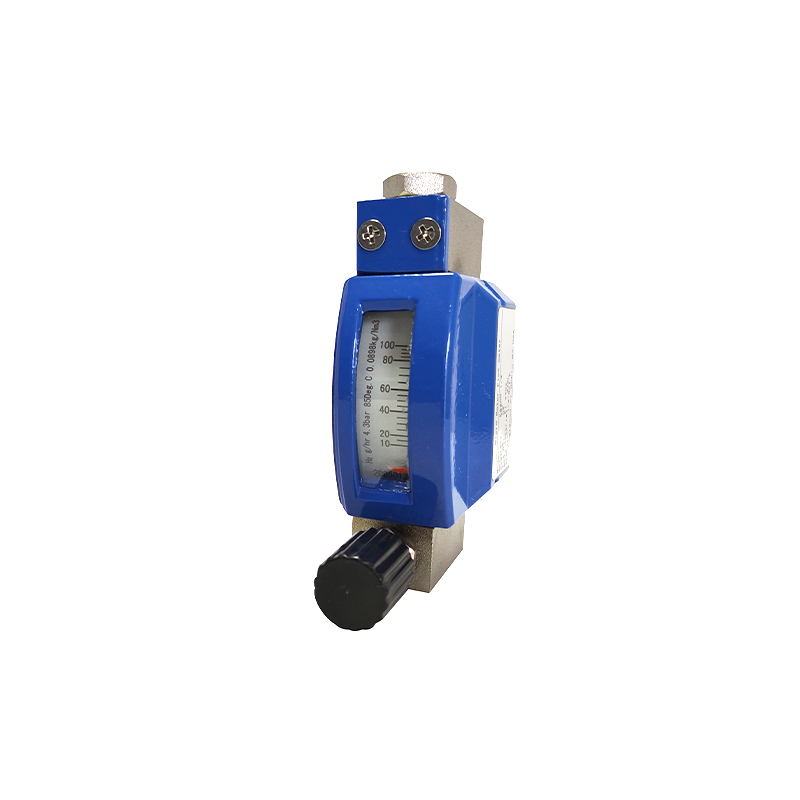

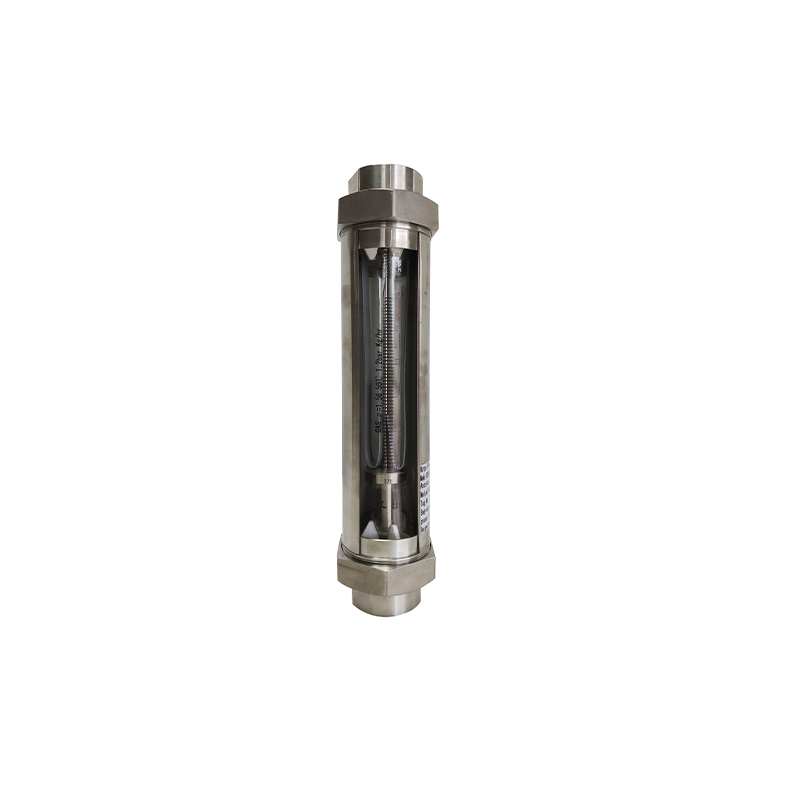

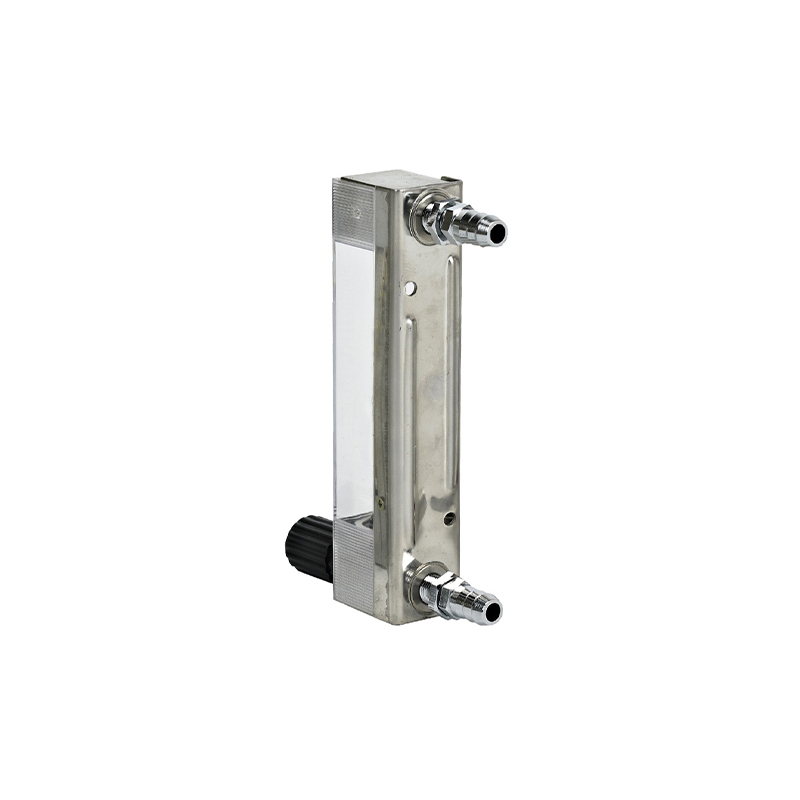

Rotor Flowmeter

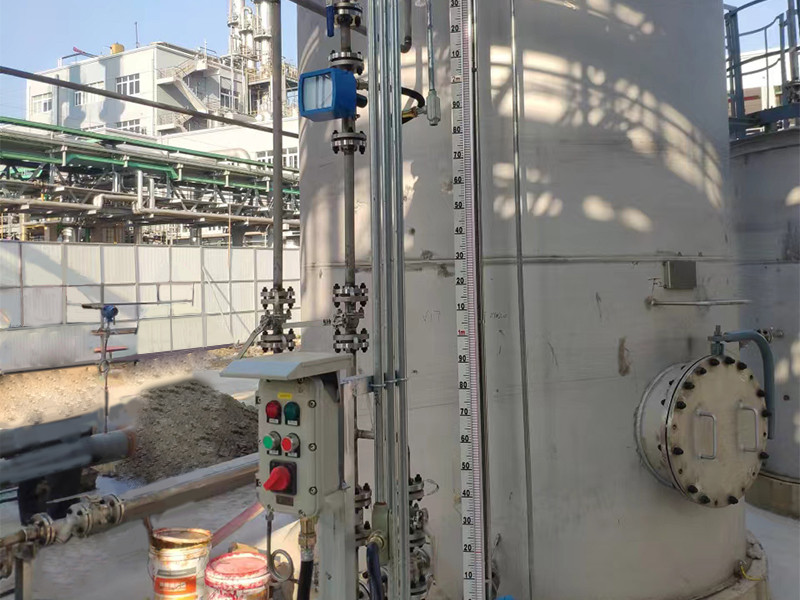

Rotor Flowmeter

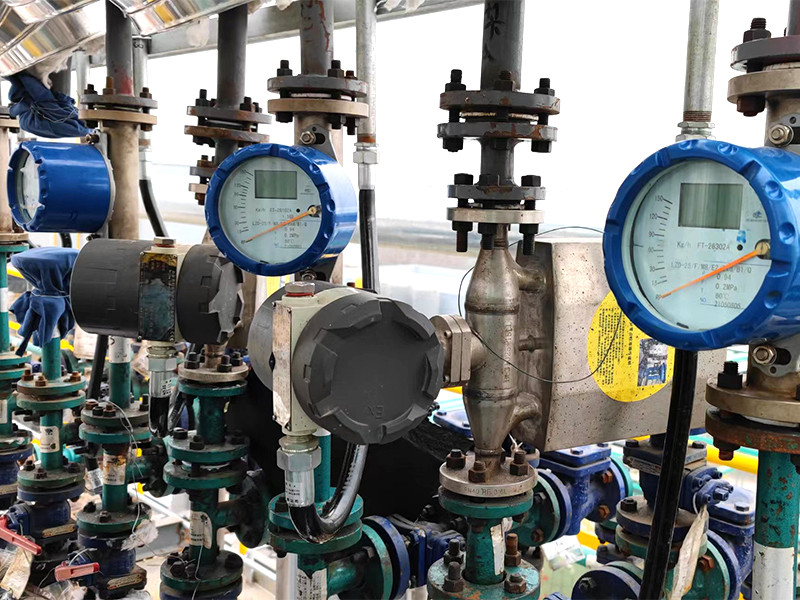

Rotor Flowmeter

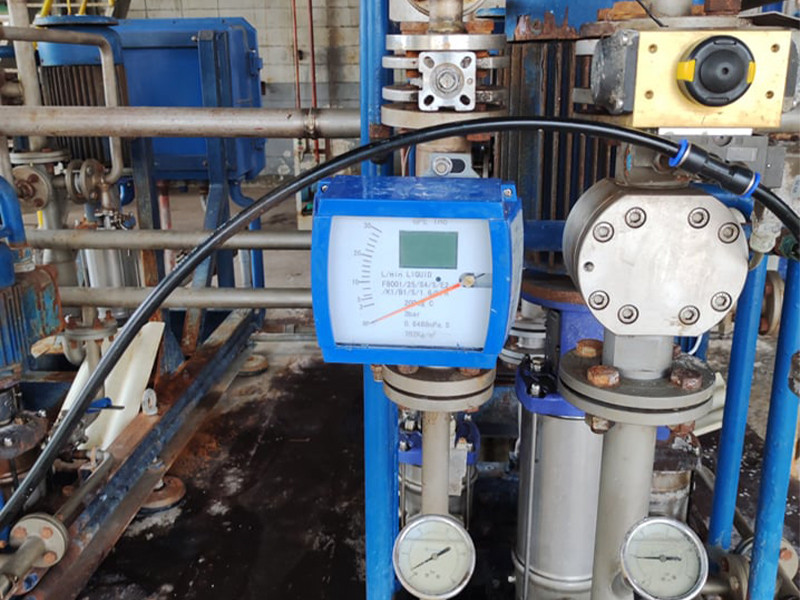

Rotor Flowmeter
