Multivariable transmitter
Features

◉ Multi-functional: a single transmitter for up to three measured values

◉ Used for level and flow measurement of gas, liquid and steam

◉ Modular: Interexchangeable electronics with self-reconfiguration

◉ Advanced diagnostics capabilities

◉ Process value and alarms

◉  Convenient: configurable via local operating keypad

◉ Linearization for primary elements

◉ Analog 4~20 mA DC two wire linear output

◉ Modbus RTU protocol for options

◉  Mass and standard volume flow in accordance with AGA 3 or DIN EN ISO 5167

◉ Dynamic flow correction with continuous calculation of Reynolds's number and flow

Request a quote

PRODUCT DETAILS

Introduction
Specifications
Documents

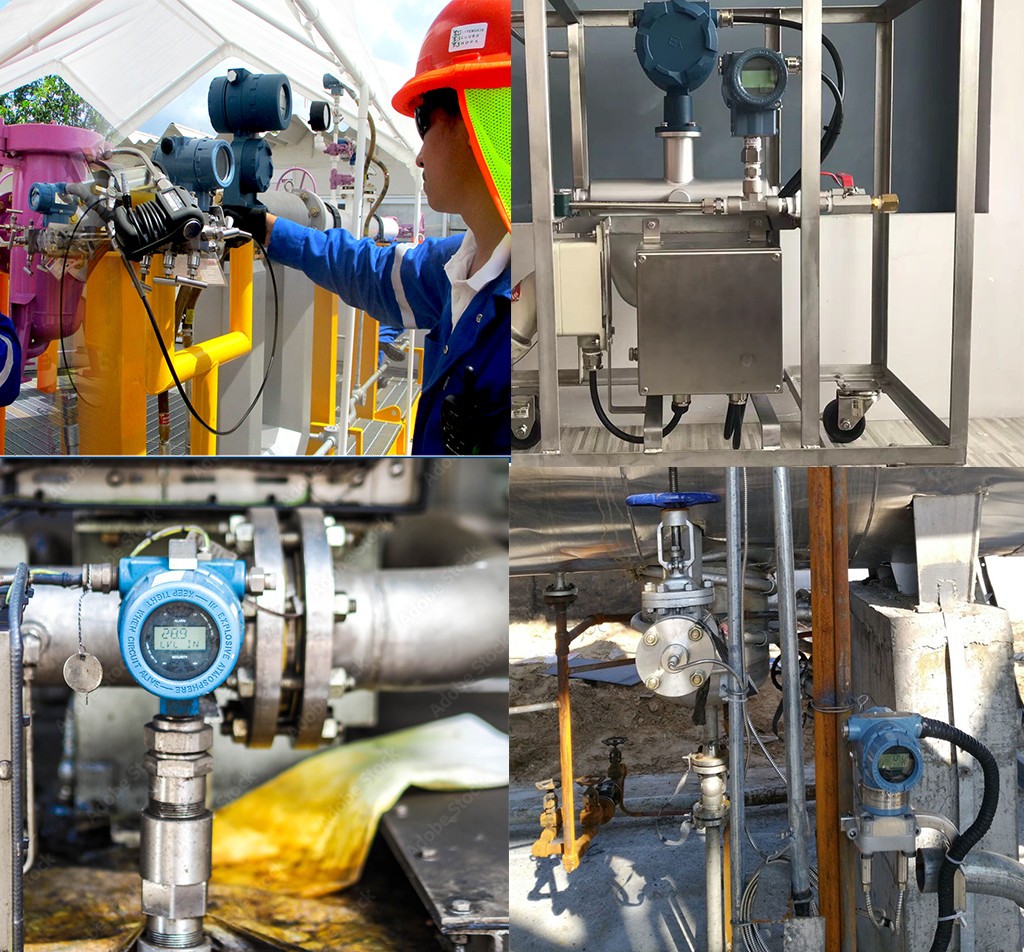

Applications

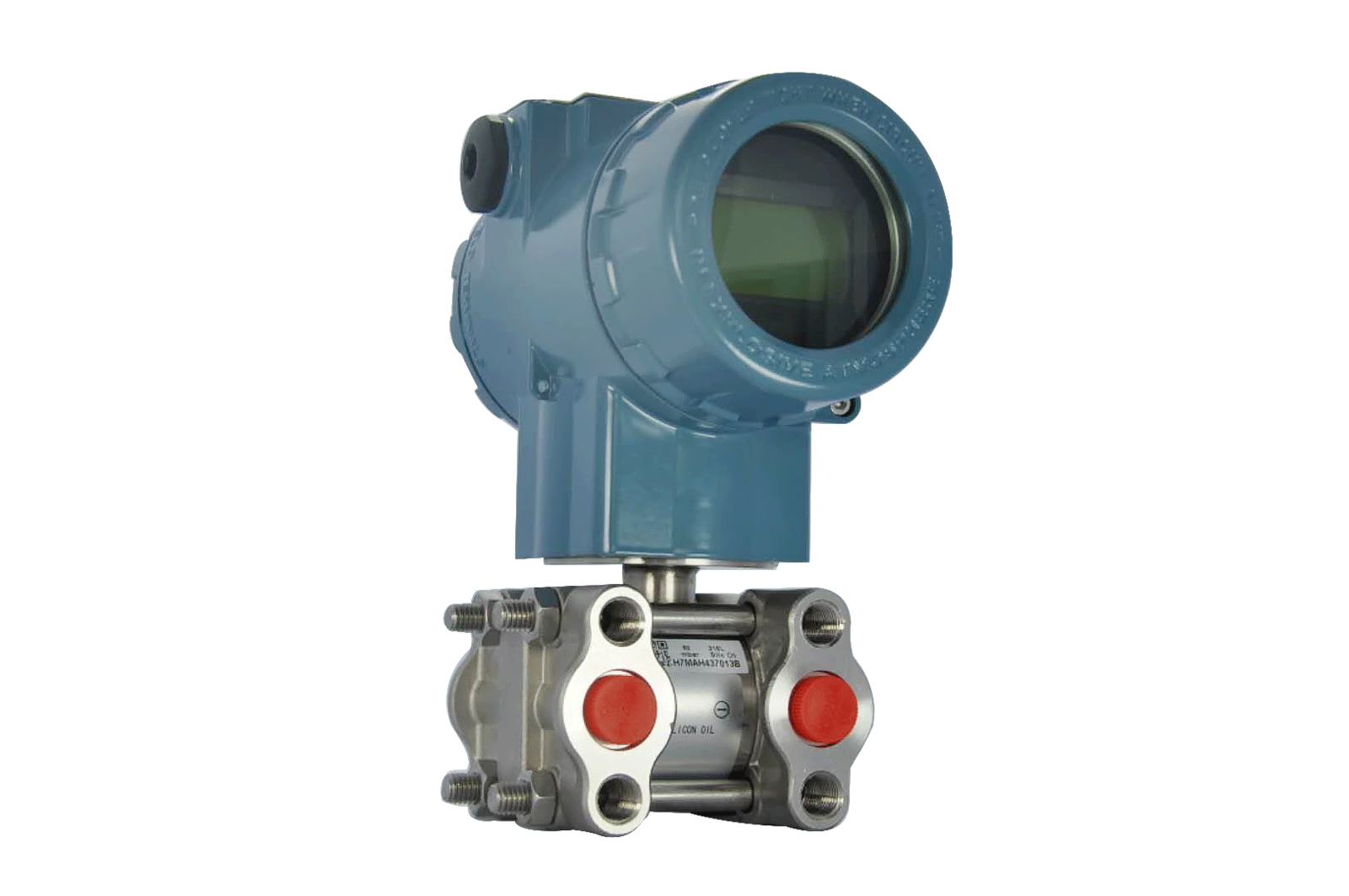

GP1001- M series Multvariable transmitter designed for simltaneous measurement of multiple independent process variables and  provides dynamic calculation of fully compensated mass flow rate  for  steam and liquids  respectively and standard volume  flow  for gases.

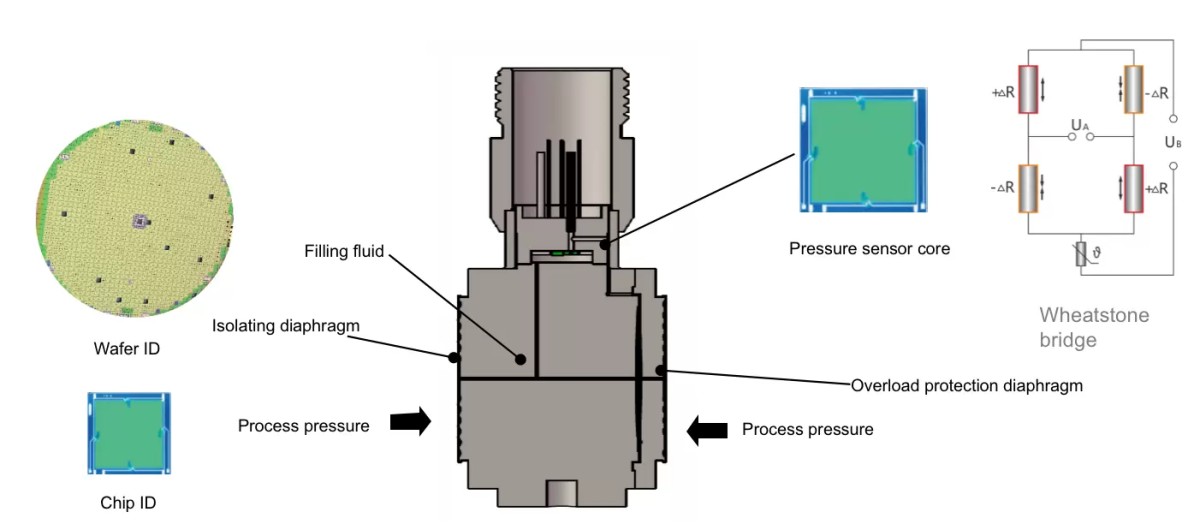

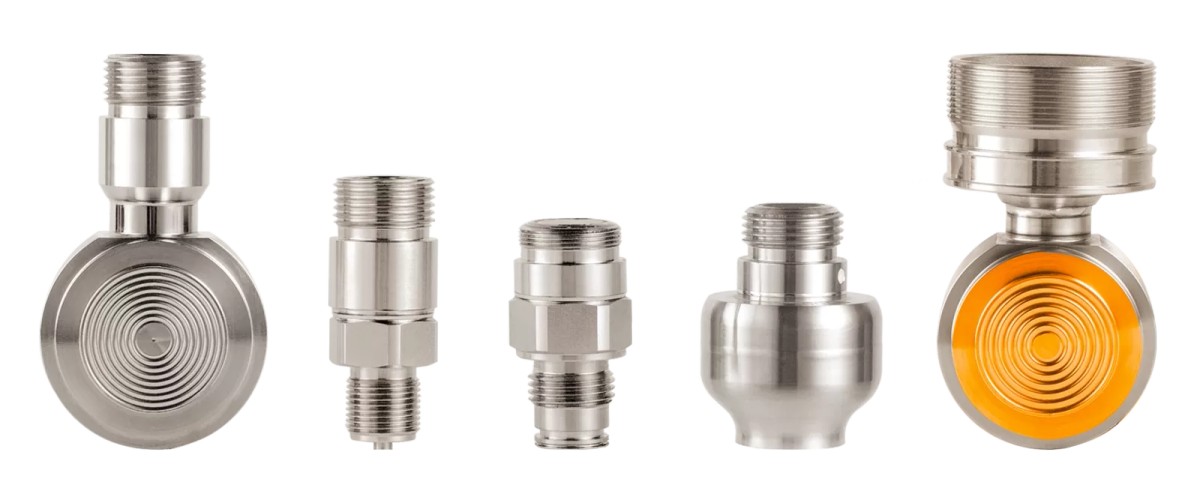

The process pressure is transmitted to the mono-silicon pressure sensor through the isolation diaphragm and the filling liquid. When the force is applied, the Wheatstone bridge imbalance resistance value changes, and the current excitation is used to convert into a linear value voltage output with the differential pressure value.

Performance Data
Reference Accuracy± 0.075% FS
Long Term Stability±0. 1% FS for 3 years
Over Pressure±0. 1% FS for 100bar
Measuring Temperature-58 °F to 1202 °F (-50 °C to 650 °C)
Ambient Temperature-40 °F to 185 °F (-40 °C to 85 °C)
Storage Temperature-40 °F to 185 °F (-40 °C to 85 °C)-58 °F to 185 °F (-50 °C to 85 °C)
Maximum Working Pressure0.25 MPa, 2 MPa, 10 MPa, 40 MPa for Metric Units36Psi , 290Psi , 1450Psi 5800Psi for US units
Response Time0. 1- 1.2 sec.
 Explosion protectionIsolated explosion ExdIIBT5  or  ExdIICT6Isolated explosion Class I, Div. 1 Groups B, C and D
