Strainers
Features

◉ Easy access vertical, in-line application

◉ Easy Maintenance

◉ Provides maximum protection against intrusion of foreign material



Request a quote

PRODUCT DETAILS

Introduction
Specifications
Documents
Applications

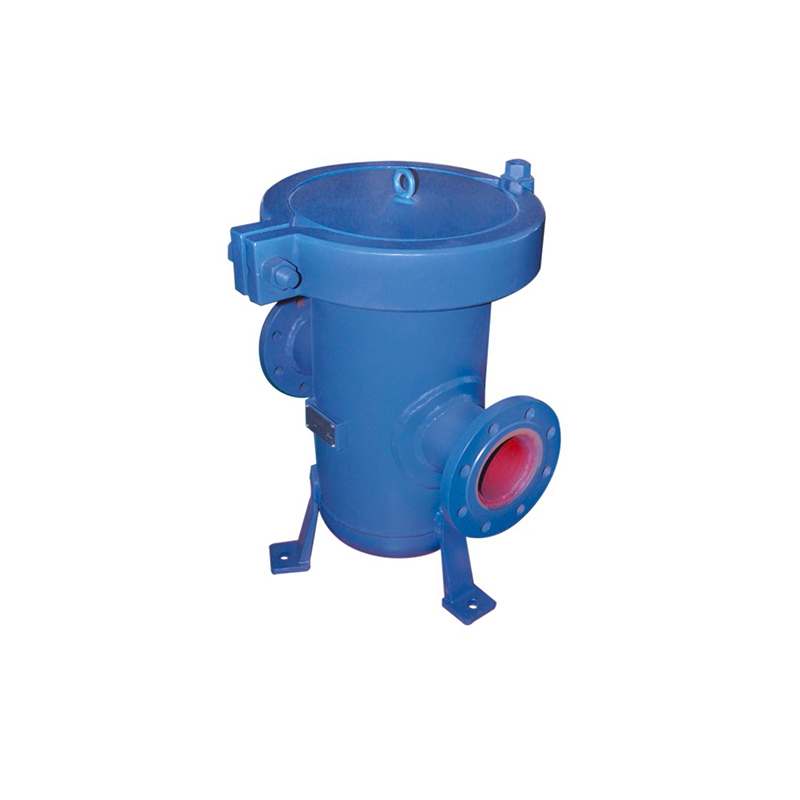

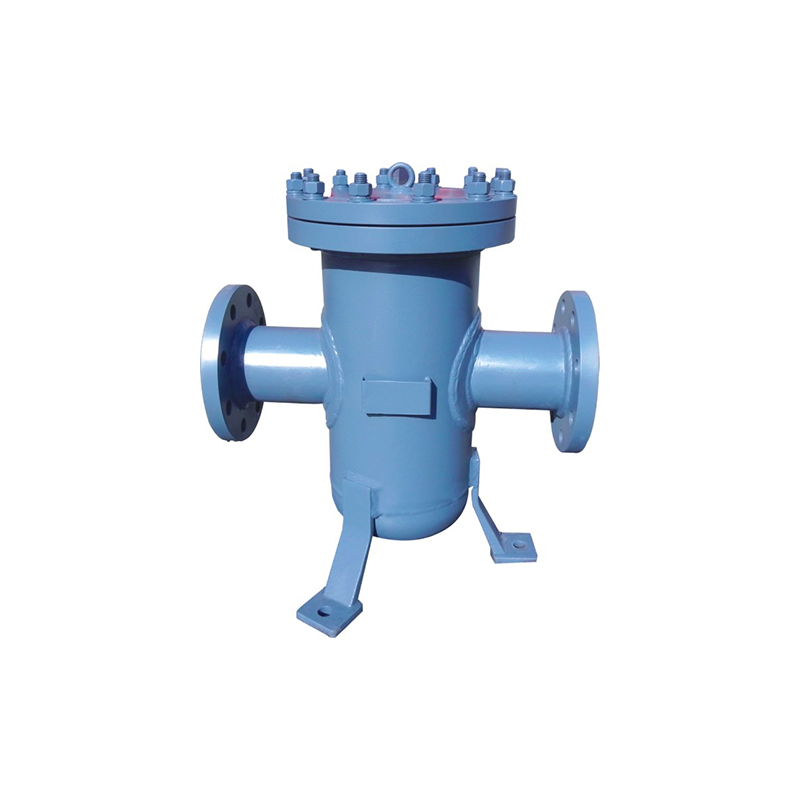

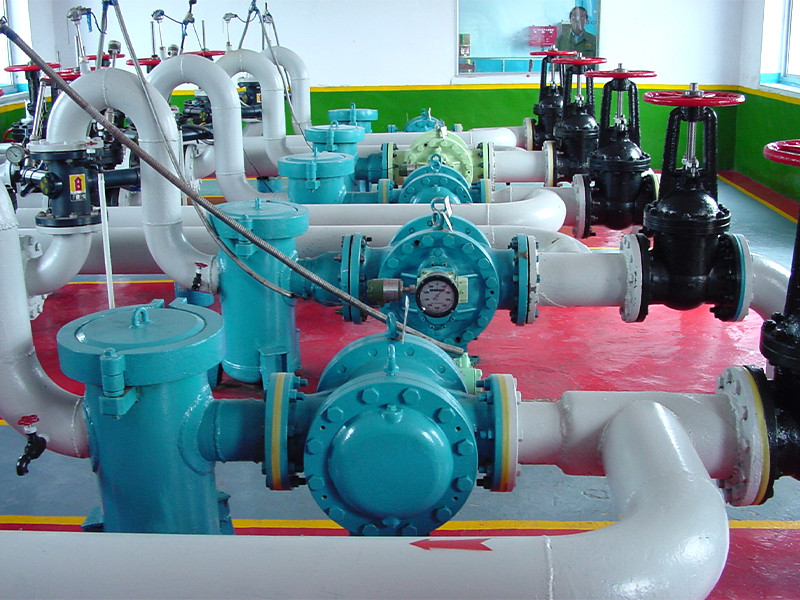

Basket Strainer(Bolted open type) can eliminate the impurities and other sundries from the liquid so that the normal running of the flowmeter can be ensured and the service life of the flowmeter can be prolonged. Hence, it is a necessary flowmeter device used in petroleum and chemical industry. Various types of the filters produced by our company are available. The specifications of the products are complete, the structure is new, the function is reliable & safe, the operation is convenient and the installation/uninstalling is fast, and so on

◉ Process connection:2”-12”( DN50mm-300mm)

◉ Materials: Cast iron, Cast steel; SUS304;SUS316 for options

◉ Max. process pressure :1450psi

◉ Mesh Size: 40# (Standard); 20#; 10#; special options

◉ Mesh Material: SS 304 (standard); SS 316 for option

◉ Fluid Temperature:0℃~ +80℃, 0℃~ +120℃; 0℃~ +150℃,0℃~ +250℃

◉ Flanges conform to American NationalStandards Institute, ANSI B16.5 150LB and ANSI B16.5 300LB and ANSI B16.5 600LB

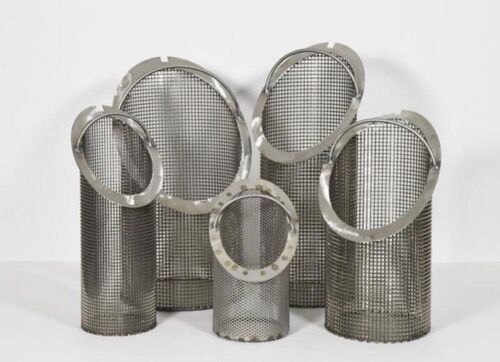

◉ 304 Stainless steel perforated screens( 316 for options)

◉ flanged retainer cap with gasket tapped for closure plug

◉ Drain/Blowoff connection furnished with closure plug



Strainers Strainers Strainers





 Oil& Gas

◉ Chemical processing

◉ Pharmacentical

◉ Pulp& Paper Industry

◉ Solvents&Resins

◉ Paints& Adhesives

◉ Flow calibration

Strainers

Strainers

Strainers

Strainers

Strainers
