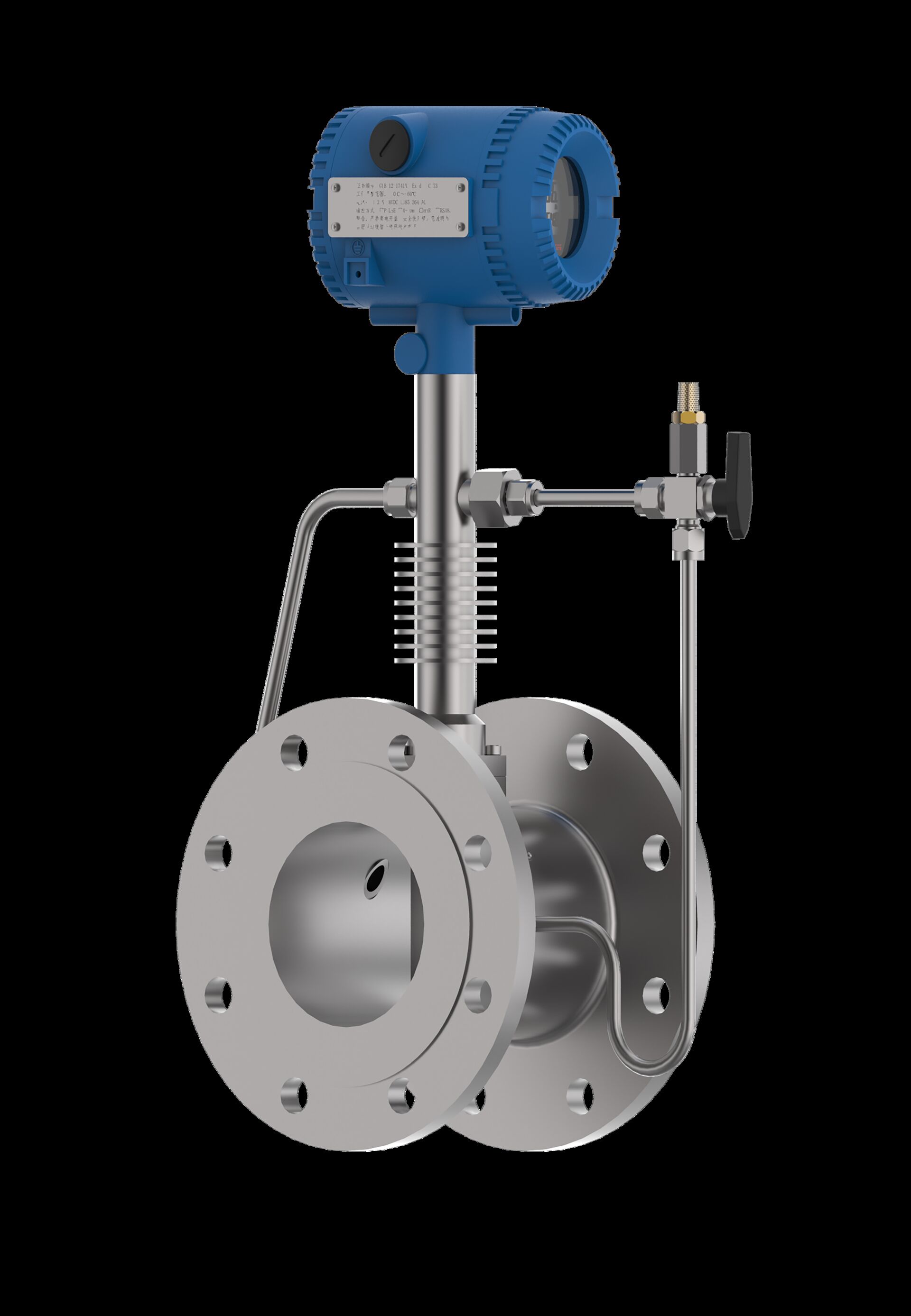

Vortex flowmeter

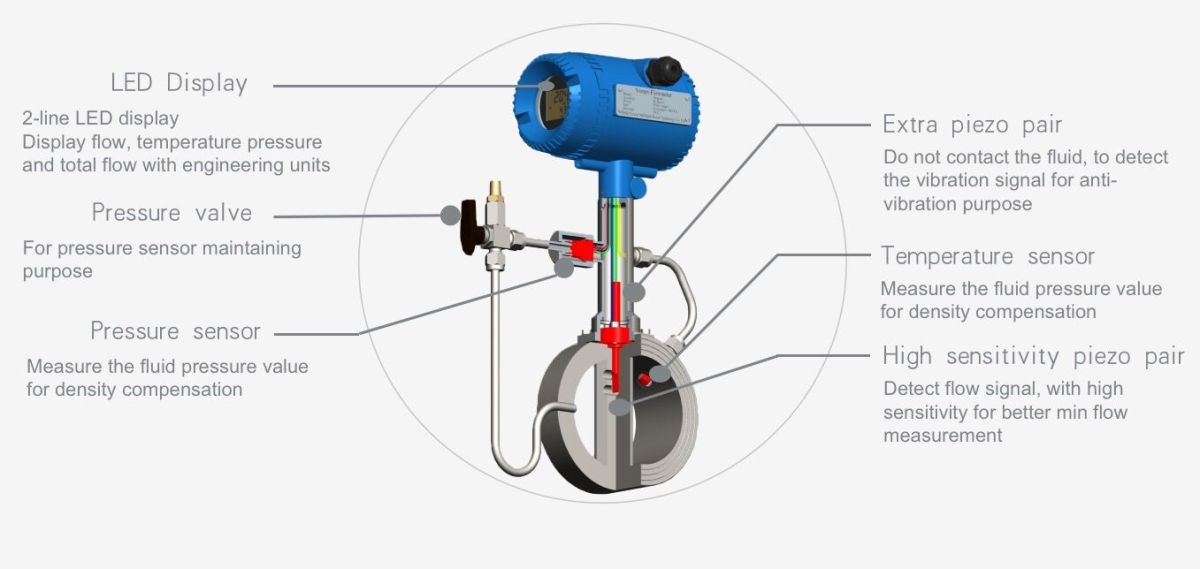

Features

 Smart integral structure with pressure and temperature compensation
 Suitable for a wide variety of applications with steam, gas, and liquid medias
 No moving parts, high reliability and durability
 Piezo-electric sensor isolated from the process fluid
 Error messages displayed for or erratic flows and flows outside of calibrated ranges
 Field calibration possible with integral or remote electronics and keypad
 True 2-wire 4-20 mA interface
 Wide measuring range, turn-down ratio of 10:1
 Insertion meters can be installed vertically, horizontally or in angled pipelines
 Available and an integrated mass flow vortex
 F4001 (insertion) can be hot-tapped with ball valve and


Request a quote

PRODUCT DETAILS

Introduction
Specifications
Documents
Applications

GPE F4001-Smart Vortex Flowmeter (also called a Vortex Shedding Flowmeter) is a versatile instrument that calculates the mass flow, volumetric flow rate, temperature, and pressure and density of any liquid, gas, or steam through a pipeline. Wide spread application is found in several industries including Petrochemical, Chemical, Pharmaceutical, Food and Beverage, Water, and Wastewater Treatment

Karman Vortex Street

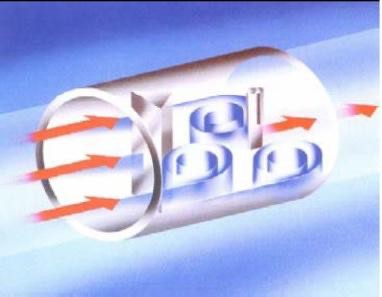

This flowmeter operates on the principle of Karman Vortex Street, any medium passing through the pipeline flows around the bluff body and sheds a series of alternating vortices on each side of the body. This phenome- non is referred to as Vortex Shedding. These vortices shed downstream of the bluff body and dissipate as they flow further. This pattern of vortices is called a Karman Vortex Street (also called a Von Karman Vortex Street, see pictures in right side Fig. 1.1 ).

Vortex flowmeter  Vortex flowmeter


SIZE1/2” to 12”(DN15mm to DN300mm)
Process Connectionswafer(standard),Flanged; Insertion;
Process temperature 23~482 °F (-5~+250  °C) (with LCD display)
Operating pressure 232 psi (1.6MPa) std; up to 928 (6.4 MPa) optional
Velocity Range
Liquids  2~20ft/s( 0.6~6 m/s).
Gas& Steam23~ 148ft/s (5~65m/s)
Accuracy1.0% for liquid; 1.5% for gas and steam
Repeatability0.33% for liquid,  0.5% for gas
Turn down ratio10:1 (liquids)
MaterialsStainless steel # 304
Signal outputPulse output, 2-wire 4-20mA Dc,Vdc, RS484(Modbus RTU) , HART foundation fieldbus.
RAM Back-up Lithium Battery, 3.6Vdc
Housing protection IP65;  IP67 for options Class I, Div. 1, Groups B, C and D listed for hazardous zone
Display units m3/h, kg/hr
KeypadRate, Total
Power supplyisolated  14~36 VDC or Battery for local
NIST traceableYES
Data storageEPROM storage  up to 5 years
Data loggerReading, sampling  Times 0.5 S

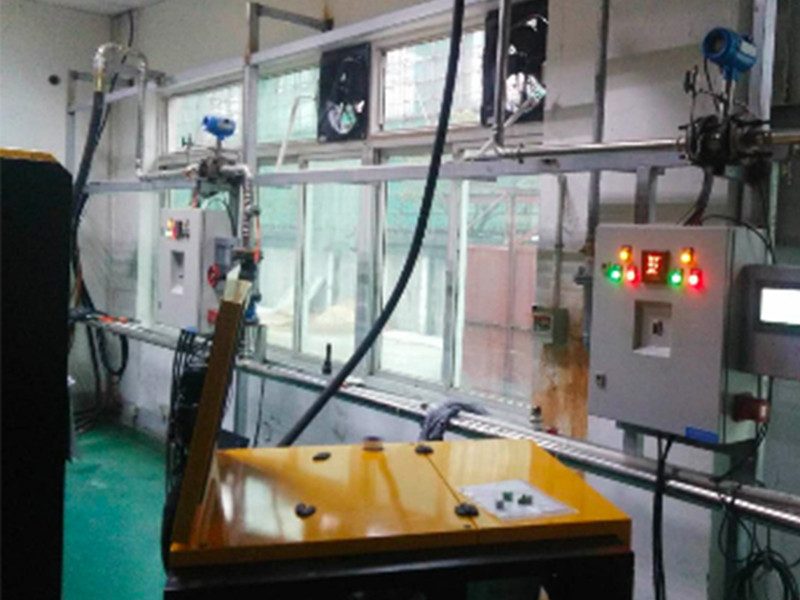

Used to measure gas, steam, and liquid. Cleaning and Sterilization (SIP and CIP) process in food, beverage, and pharmaceutical industries.

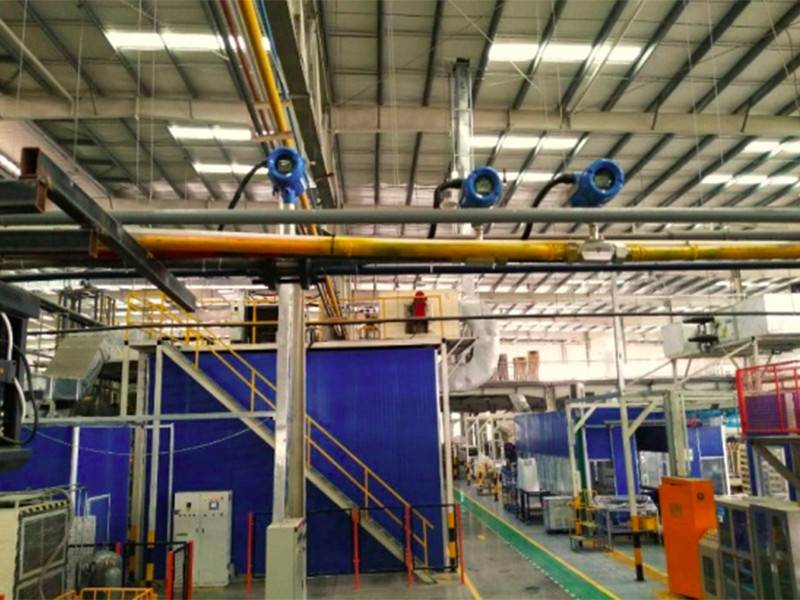

Used in various industries like petrochemical, water and waste water, food and beverages.



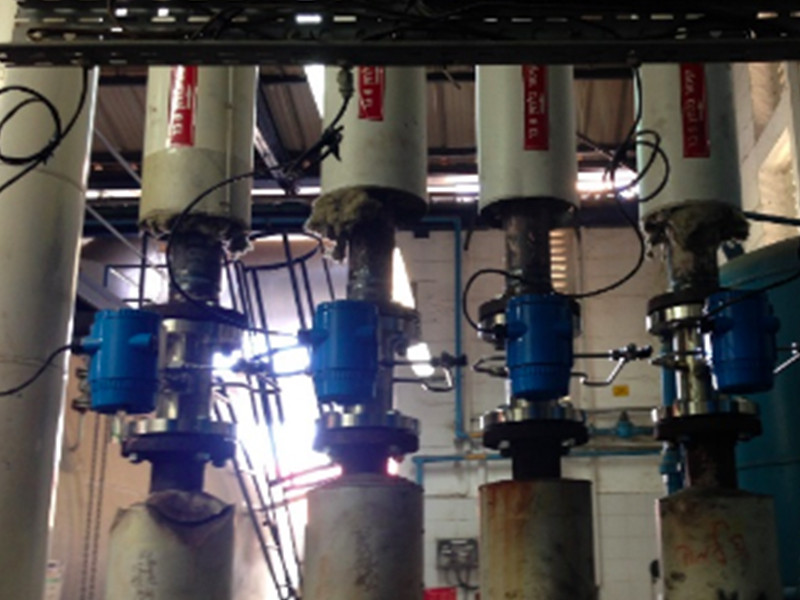

9.jpg Vortex flowmeter Vortex flowmeter
