Multiphase
Features

◉ No X-Ray/ No nuclear source, not harmful for human body

◉ Compact skid designed , easy instatllaton

◉ Simple design and easy to operate

◉ Better choice for gas broken efficency

◉ Applicable for all flow regimes

◉ Uses proven conventional technologies;

◉ lare range for oil well mesurement

◉ Parallel liquid and/or gas meters to handle

◉ wide flow range


Request a quote

PRODUCT DETAILS

Introduction
Specifications
Documents
Applications

The YQSJL-YN Advanced Flow Metering System is a simple yet innovative process technology that measures multiphase flow rates with superior  accuracy at a very low pressure drop throughout the system. The main principle of the technology is to effectively separate the free gas from  the liquid phase and to measure 3 phases independently. With the low pressure drop separation, the measurement equipment used in each phase can be utilized to their maximum effectiveness and potential.

Multiphase



Liquid relative error≦ 2.5%
Water ratio relative error≦5%
Gas relative error≦2%
Liquid flow rangeFlowrange0-9000 m3/d (0-117938bpd)
Gas flow range0-3000m3 / d
Water content0-100%
Gas content0-100%
Mediumfor all flow pattern
Liquid viscosityW10000mPa.s
Pressure loss≦1bar
Medium temperature0 to 120°C
Working pressureW4.0MPa (as request)
Ambient temperature -20°C~+60°C
Data processDisplay for Instantaneous flow and total flow of liquid, gas, water and oil;Real time status for system and device;• Journal sheet;Remote monitoring (as user's request)

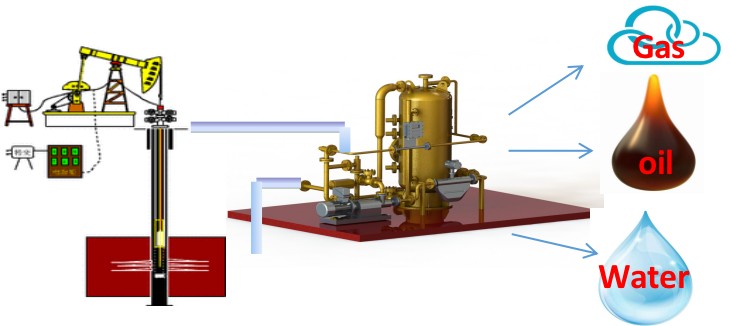

It’s used at upstream at oil filed outlet to measure multiphase flow.


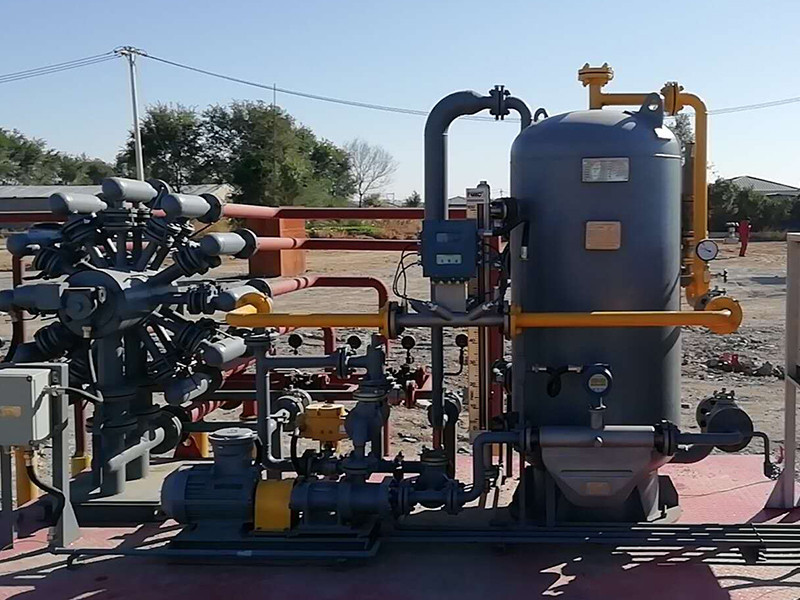

Multiphase

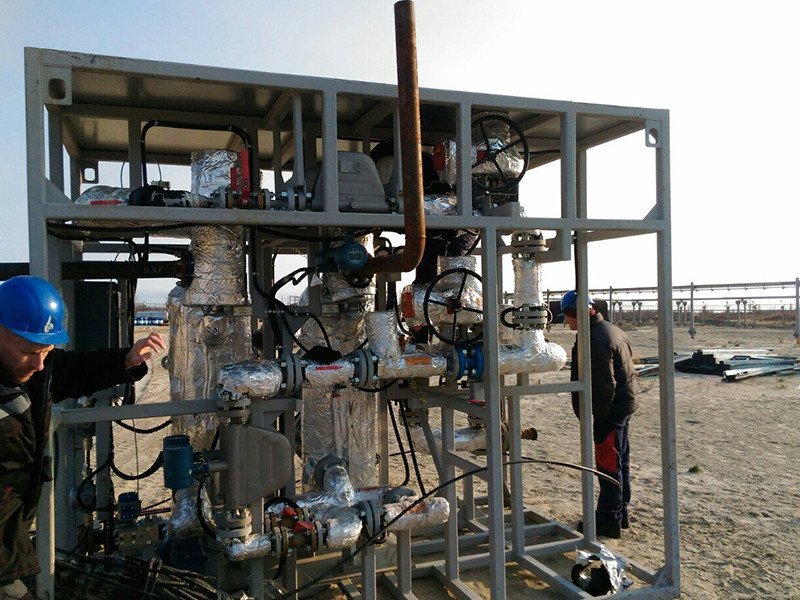

Multiphase

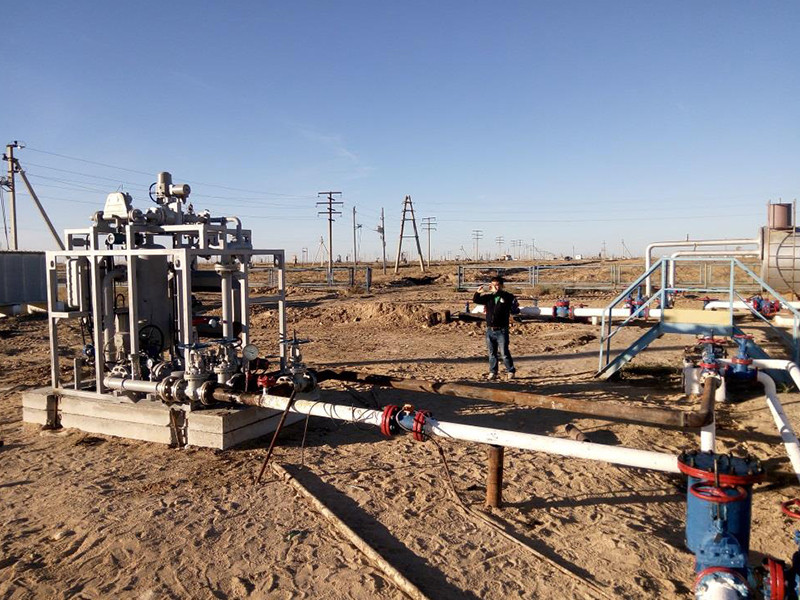

Multiphase

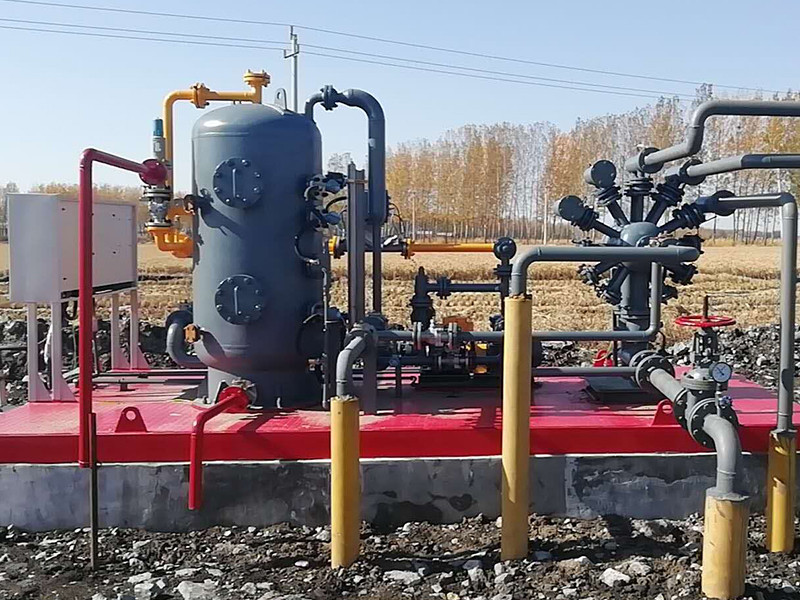

Multiphase
